Implementing QCheckBox for Multiple Selections in PySide6
QCheckBox is a versatile widget in PySide6 that allows users to toggle options on or off, making it ideal for scenarios where multiple independent selections are needed, such as checklists or preference settings. By creating multiple QCheckBox instances and arranging them appropriately, you can build intuitive interfaces for handling several choices at once. Let's dive into the essentials, starting with its core capabilities.
Key Features
- Binary or Tristate States: Supports simple checked/unchecked modes by default, with an optional third "no change" state for more nuanced interactions.
- Text and Icon Support: Displays customizable text labels with optional icons, and includes shortcut keys via ampersands (&) for accessibility.
- Independent Behavior: Each checkbox operates on its own, perfect for non-exclusive multiple selections without affecting others.
- Signal Emission: Triggers signals on state changes, enabling dynamic responses like updating UI elements or processing user input.
- Grouping Compatibility: Can be visually grouped for better organization or logically managed for exclusive selections.
Creating a QCheckBox
To get started, instantiate a QCheckBox with or without text, and optionally specify a parent widget for hierarchy management. This widget inherits from QAbstractButton, so it shares common button behaviors like being checkable.
Here's a basic example to create a single checkbox:
from PySide6.QtWidgets import QApplication, QCheckBox, QWidget
import sys
class MainWindow(QWidget):
def __init__(self):
super().__init__() # Initialize the parent QWidget class
self.setWindowTitle("Feature Toggle")
self.setMinimumSize(400, 300)
# Set up the UI components
self.checkbox = QCheckBox("Enable Feature", self) # Create checkbox with parent
self.checkbox.setChecked(True) # Set initial state
def main():
app = QApplication(sys.argv)
window = MainWindow()
window.show()
sys.exit(app.exec())
if __name__ == "__main__":
main()
This code launches a window with a checkbox labeled "Enable Feature," pre-checked for demonstration. For multiple selections, simply create additional instances and add them to a layout (more on that below).
Handling State Changes
QCheckBox emits the checkStateChanged signal whenever its state toggles, passing the new Qt.CheckState value. Connect this to a slot (a Python function) to react in real-time, such as collecting selected options from multiple checkboxes.
Example connection:
from PySide6.QtCore import Qt
from PySide6.QtWidgets import QApplication, QCheckBox, QWidget
import sys
class MainWindow(QWidget):
def __init__(self):
super().__init__() # Initialize the parent QWidget class
self.setWindowTitle("Feature Toggle")
self.setMinimumSize(400, 300)
# Set up the UI components
self.checkbox = QCheckBox("Enable Feature", self) # Create checkbox with parent
self.checkbox.setTristate(True) # Enable tri-state mode to allow partially checked state
self.checkbox.setChecked(True) # Set initial state
self.checkbox.checkStateChanged.connect(self.on_checkbox_changed)
def on_checkbox_changed(self, state):
if state == Qt.CheckState.Unchecked:
print("Checkbox state changed to: Unchecked")
elif state == Qt.CheckState.PartiallyChecked:
print("Checkbox state changed to: Partially Checked")
elif state == Qt.CheckState.Checked:
print("Checkbox state changed to: Checked")
def main():
app = QApplication(sys.argv)
window = MainWindow()
window.show()
sys.exit(app.exec())
if __name__ == "__main__":
main()
Using Tristate Mode
For scenarios requiring a third state—such as indicating partial selection or "no change" in hierarchical setups—enable tristate mode. This adds a partially checked state alongside checked and unchecked. To activate it, call setTristate(True) on the checkbox. You can then query or set the state using checkState() and setCheckState(), which work with Qt.CheckState enums: Unchecked (0), PartiallyChecked (1), or Checked (2).
Here's an example demonstrating tristate:
from PySide6.QtCore import Qt
from PySide6.QtWidgets import QApplication, QCheckBox, QWidget, QVBoxLayout
import sys
class MainWindow(QWidget):
def __init__(self):
super().__init__() # Initialize the parent QWidget class
self.setWindowTitle("Tristate Toggle")
self.setMinimumSize(400, 300)
# Set up the UI components
self.tristate_checkbox = QCheckBox("Tristate Option", self)
self.tristate_checkbox.setTristate(True) # Enable tristate mode
self.tristate_checkbox.setCheckState(Qt.CheckState.PartiallyChecked) # Set initial partial state
self.tristate_checkbox.checkStateChanged.connect(self.on_tristate_changed)
layout = QVBoxLayout()
layout.addWidget(self.tristate_checkbox)
self.setLayout(layout)
def on_tristate_changed(self, state):
states = {Qt.CheckState.Unchecked: "Unchecked", Qt.CheckState.PartiallyChecked: "Partially Checked",
Qt.CheckState.Checked: "Checked"}
print(f"Tristate checkbox: {states[state]}")
def main():
app = QApplication(sys.argv)
window = MainWindow()
window.show()
sys.exit(app.exec())
if __name__ == "__main__":
main()
This creates a checkbox that cycles through all three states when clicked, printing the current state on changes.
Grouping Checkboxes Visually with QGroupBox
For better user experience, group related checkboxes visually using QGroupBox, which adds a titled frame around them. This doesn't enforce logic but clarifies sections in your UI. Combine it with a layout to arrange the checkboxes inside.
Example:
from PySide6.QtCore import Qt
from PySide6.QtWidgets import QApplication, QCheckBox, QWidget, QVBoxLayout, QGroupBox
import sys
class MainWindow(QWidget):
def __init__(self):
super().__init__() # Initialize the parent QWidget class
self.setWindowTitle("Grouping Checkboxes")
self.setMinimumSize(400, 300)
# Set up the UI components
self.group_box = QGroupBox("Preferences") # Title with optional shortcut via &
self.vbox = QVBoxLayout()
self.option_a = QCheckBox("Option A")
self.option_b = QCheckBox("Option B")
self.tristate_checkbox = QCheckBox("Tristate Option")
self.tristate_checkbox.setTristate(True)
self.tristate_checkbox.setCheckState(Qt.CheckState.PartiallyChecked)
self.tristate_checkbox.checkStateChanged.connect(self.on_tristate_changed)
self.vbox.addWidget(self.option_a)
self.vbox.addWidget(self.option_b)
self.vbox.addWidget(self.tristate_checkbox)
self.group_box.setLayout(self.vbox)
main_layout = QVBoxLayout()
main_layout.addWidget(self.group_box)
self.setLayout(main_layout)
def on_tristate_changed(self, state):
states = {Qt.CheckState.Unchecked: "Unchecked",
Qt.CheckState.PartiallyChecked: "Partially Checked",
Qt.CheckState.Checked: "Checked"}
print(f"Tristate checkbox: {states[state]}")
def main():
app = QApplication(sys.argv)
window = MainWindow()
window.show()
sys.exit(app.exec())
if __name__ == "__main__":
main()
This creates a framed group titled "Preferences" containing two checkboxes, ideal for organizing multiple selections. You can make the group checkable with group_box.setCheckable(True), which toggles all child widgets on/off.
Logical Grouping with QButtonGroup
If you need to manage checkbox states logically—such as enforcing exclusive selections (only one checked)—use QButtonGroup. For standard multiple selections, set it to non-exclusive mode, allowing independent toggling while still tracking the group.
Example for non-exclusive grouping:
from PySide6.QtWidgets import QApplication, QCheckBox, QWidget, QVBoxLayout, QButtonGroup
import sys
class MainWindow(QWidget):
def __init__(self):
super().__init__() # Initialize the parent QWidget class
self.setWindowTitle("Logical Grouping")
self.setMinimumSize(400, 300)
# Set up the UI components
self.button_group = QButtonGroup()
self.button_group.setExclusive(False) # Allows multiple checks
self.choice1 = QCheckBox("Choice 1")
self.choice2 = QCheckBox("Choice 2")
self.button_group.addButton(self.choice1)
self.button_group.addButton(self.choice2)
self.button_group.buttonToggled.connect(self.on_toggled)
layout = QVBoxLayout()
layout.addWidget(self.choice1)
layout.addWidget(self.choice2)
self.setLayout(layout)
def on_toggled(self, button, checked):
print(f"{button.text()} is {'checked' if checked else 'unchecked'}")
def main():
app = QApplication(sys.argv)
window = MainWindow()
window.show()
sys.exit(app.exec())
if __name__ == "__main__":
main()
This setup tracks changes across the group without visual elements; combine with QGroupBox for a complete solution.
Arranging Multiple Checkboxes with Layouts
To display multiple QCheckBox neatly, use layouts like QVBoxLayout for vertical stacking. This automatically handles resizing and positioning.
Basic arrangement:
from PySide6.QtWidgets import QApplication, QCheckBox, QWidget, QVBoxLayout, QButtonGroup, QSpacerItem, QSizePolicy
import sys
class MainWindow(QWidget):
def __init__(self):
super().__init__() # Initialize the parent QWidget class
self.setWindowTitle("Logical Grouping")
self.setMinimumSize(400, 300)
# Set up the UI components
self.layout = QVBoxLayout()
self.layout.addWidget(QCheckBox("Item 1"))
self.layout.addWidget(QCheckBox("Item 2"))
self.layout.addWidget(QCheckBox("Item 3"))
self.spacer = QSpacerItem(20, 40, QSizePolicy.Minimum, QSizePolicy.Expanding)
self.layout.addItem(self.spacer)
self.setLayout(self.layout)
def main():
app = QApplication(sys.argv)
window = MainWindow()
window.show()
sys.exit(app.exec())
if __name__ == "__main__":
main()
This vertically aligns three checkboxes in the window, ensuring a clean layout for multiple selections.
Practical Example
Let's combine these concepts into a unified application: a preferences dialog with multiple checkboxes grouped visually, arranged in a layout, and connected to a function that collects and prints selected options when a button is clicked. To demonstrate a real use case for tristate features, we'll include a parent tristate checkbox that aggregates the state of child checkboxes. This is a common pattern for representing hierarchical or grouped settings, such as in file selectors or permission systems, where the parent indicates overall status: fully checked if all children are enabled, unchecked if none are, and partially checked for mixed states. Changing the parent propagates the state to children (except from partial, to avoid overriding mixed selections), while child changes update the parent automatically.
from PySide6.QtWidgets import QApplication, QWidget, QVBoxLayout, QGroupBox, QCheckBox, QPushButton, QSpacerItem, \\
QSizePolicy
from PySide6.QtCore import Qt
import sys
class PreferencesWindow(QWidget):
def __init__(self):
super().__init__()
self.setWindowTitle("Multiple Selections with QCheckBox")
self.setMinimumSize(400, 300)
# Create parent tristate checkbox
self.parent_checkbox = QCheckBox("Enable All Features")
self.parent_checkbox.setTristate(True)
# The checkStateChanged signal is emitted whenever the check state changes
self.parent_checkbox.checkStateChanged.connect(self.update_children)
# Create child checkboxes
self.checkbox1 = QCheckBox("Enable Notifications")
self.checkbox2 = QCheckBox("Dark Mode")
self.checkbox3 = QCheckBox("Auto Save")
self.children = [self.checkbox1, self.checkbox2, self.checkbox3]
# Connect children's state changes to the update_parent method
for child in self.children:
child.checkStateChanged.connect(self.update_parent)
# Let update_parent set the initial state of the parent checkbox correctly
self.update_parent()
# Group children visually in a QGroupBox
group_box = QGroupBox("User Settings")
vbox = QVBoxLayout()
vbox.addWidget(self.checkbox1)
vbox.addWidget(self.checkbox2)
vbox.addWidget(self.checkbox3)
group_box.setLayout(vbox)
spacer = QSpacerItem(20, 40, QSizePolicy.Minimum, QSizePolicy.Expanding)
vbox.addItem(spacer)
# Button to submit selections
submit_button = QPushButton("Apply")
submit_button.clicked.connect(self.apply_settings)
# Main layout for the window
main_layout = QVBoxLayout(self)
main_layout.addWidget(self.parent_checkbox)
main_layout.addWidget(group_box)
main_layout.addWidget(submit_button)
def update_parent(self):
"""
Updates the parent checkbox's state based on the children's states.
"""
checked_count = sum(1 for cb in self.children if cb.isChecked())
total = len(self.children)
if checked_count == total:
new_state = Qt.CheckState.Checked
elif checked_count == 0:
new_state = Qt.CheckState.Unchecked
else:
new_state = Qt.CheckState.PartiallyChecked
self.parent_checkbox.blockSignals(True)
self.parent_checkbox.setCheckState(new_state)
self.parent_checkbox.blockSignals(False)
def update_children(self, state):
"""
Updates children's state when the parent is clicked by the user.
"""
if state == Qt.CheckState.PartiallyChecked:
self.parent_checkbox.setCheckState(Qt.CheckState.Checked)
return
# When the parent is Checked or Unchecked, update all children to match.
is_checked = (state == Qt.CheckState.Checked)
for child in self.children:
child.blockSignals(True)
child.setChecked(is_checked)
child.blockSignals(False)
def apply_settings(self):
"""
Prints the current state of the selections.
"""
selected = [cb.text() for cb in self.children if cb.isChecked()]
parent_state_str = {
Qt.CheckState.Unchecked: "Unchecked",
Qt.CheckState.PartiallyChecked: "Partially Checked",
Qt.CheckState.Checked: "Checked"
}
print(f"Parent state: {parent_state_str[self.parent_checkbox.checkState()]}")
print(f"Selected child options: {', '.join(selected) if selected else 'None'}")
if __name__ == "__main__":
app = QApplication(sys.argv)
window = PreferencesWindow()
window.show()
sys.exit(app.exec())

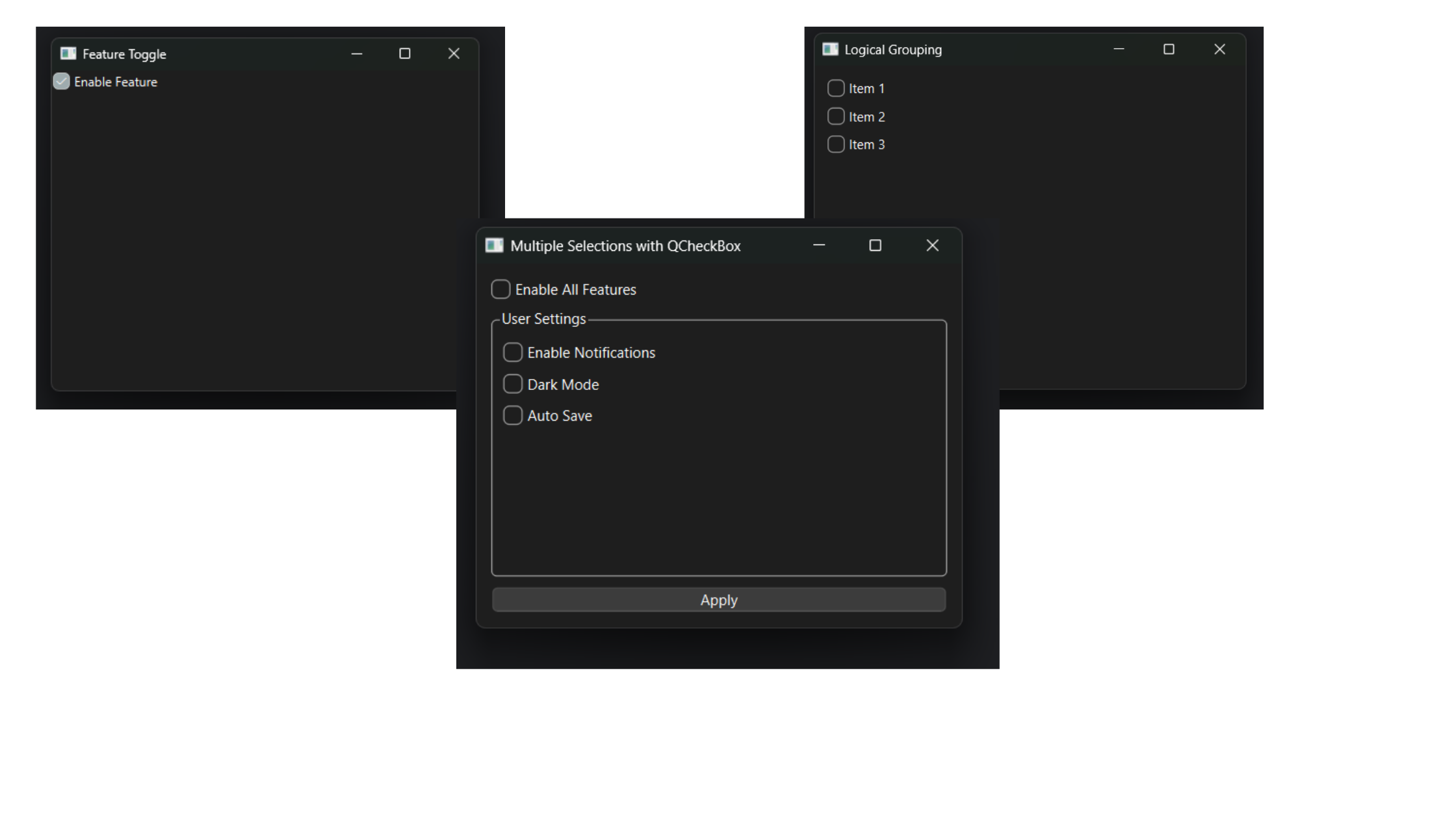

This example creates a window with a tristate parent checkbox and a grouped set of child checkboxes for multiple selections. The tristate feature provides a real-world use case by visually representing the aggregate state of the group, making it easier for users to understand and control bulk settings. Clicking "Apply" gathers and prints the states, demonstrating practical usage like saving user preferences.
For related topics, consider exploring QRadioButton for exclusive choices or integrating checkboxes into model-view frameworks for data-driven selections. Keep an eye on Qt updates for potential new widget enhancements or QML integrations for hybrid UIs.
